Choosing the right equipment is essential for any industrial setup, especially when it comes to thermal energy transfer. One of the most critical components in such systems is the heat exchanger. Understanding different Heat Exchanger Types is key to ensuring efficiency, durability, and performance.
At G. T. Metals and Tubes, we specialize in manufacturing high-grade tubes used across all heat exchanger types, making us a reliable name in the industrial engineering sector.
What Are Heat Exchangers?
A heat exchanger is a mechanical device designed to transfer heat from one fluid to another without direct contact. It’s widely used in power plants, chemical processing units, HVAC systems, and more.
There are multiple heat exchanger types, and each type has a unique design suited to specific operations and industries.
Why Knowing Heat Exchanger Types Matters
Understanding heat exchanger types allows engineers and plant managers to:
- Maximize energy efficiency
- Reduce operational costs
- Minimize maintenance downtime
- Extend equipment lifespan
Choosing the wrong type can lead to poor performance and expensive repairs.
Classification of Heat Exchanger Types
Heat exchangers are classified based on several factors, such as flow configuration, construction design, and surface area.
1. Based on Flow Arrangement
Parallel Flow Heat Exchangers
Both fluids move in the same direction. Although simple in design, they are less efficient for large heat transfers.
Counter Flow Heat Exchangers
Fluids flow in opposite directions, allowing maximum temperature difference and high heat transfer efficiency.
Cross Flow Heat Exchangers
Fluids cross paths at right angles. Commonly used in automotive radiators and air conditioners.
2. Based on Construction

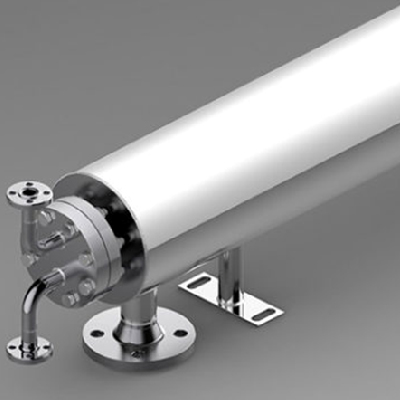

Shell and Tube Heat Exchangers
One of the most widely used heat exchanger types. It includes a bundle of tubes inside a cylindrical shell. One fluid passes through the tubes, while the other circulates around them within the shell.
Common Uses: Oil refineries, power plants, and chemical industries.
Plate Heat Exchangers
Consist of multiple thin plates stacked together, allowing high heat transfer in a compact space.
Used In: Food processing, beverage industries, and pharmaceutical manufacturing.
Double Pipe Heat Exchangers
A simple design involving one pipe within another. Ideal for small-scale heat exchange tasks.
3. Based on Surface Type
Extended Surface Heat Exchangers
Fitted with fins to increase surface area, allowing faster heat exchange in air or gas-based systems.
Plain Surface Heat Exchangers
Feature smooth surfaces for fluid flow and are best when fouling or scaling is a concern.
Advanced Heat Exchanger Types
Apart from standard models, some special designs cater to niche applications.
Air Cooled Heat Exchangers
Use air instead of water for cooling, ideal for areas with water scarcity.
Plate Fin Heat Exchangers
Highly compact and used in aerospace and cryogenic applications.
Spiral Heat Exchangers
Two channels wound around a central core; used when space is limited and fouling is likely.
Applications Across Industries
Various heat exchanger types serve different purposes in sectors such as:
- Chemical and petrochemical plants
- HVAC and refrigeration systems
- Power generation units
- Food and dairy processing
- Marine and automotive industries
Factors to Consider When Choosing Heat Exchanger Types
When selecting the right type of heat exchanger, you should assess:
- Temperature and pressure limits
- Corrosiveness of fluids
- Space constraints
- Ease of cleaning and maintenance
- Initial and long-term costs
At G. T. Metals and Tubes, we help clients select tubes and materials that are compatible with specific heat exchanger types and their operational conditions.
Materials Commonly Used in Heat Exchangers
The material used in a heat exchanger affects its durability, thermal conductivity, and resistance to corrosion.
Popular Choices Include:
- Stainless Steel – Corrosion-resistant and ideal for high-pressure systems
- Copper Alloys – Excellent thermal conductivity
- Carbon Steel – Cost-effective and robust
- Titanium – Best for highly corrosive environments
We offer a wide range of materials suitable for all major heat exchanger types and applications.
Why Choose G. T. Metals and Tubes
With years of experience and an advanced production facility, G. T. Metals and Tubes offers:
- High-quality heat exchanger tubes
- Customized sizing and material selection
- Timely delivery and expert support
Our focus is on ensuring your system gets the best thermal performance with the most suitable heat exchanger types.
Conclusion: Selecting the Right Heat Exchanger Types
Understanding the various heat exchanger types helps industries optimize performance, reduce waste, and lower costs. Whether you’re designing a new system or upgrading an existing one, choosing the right type makes a significant difference.
Trust G. T. Metals and Tubes to provide the ideal tubes and technical guidance for any heat exchanger type. Let’s build efficient, sustainable, and high-performance systems—together.
